CHARGING REQUIREMENTS

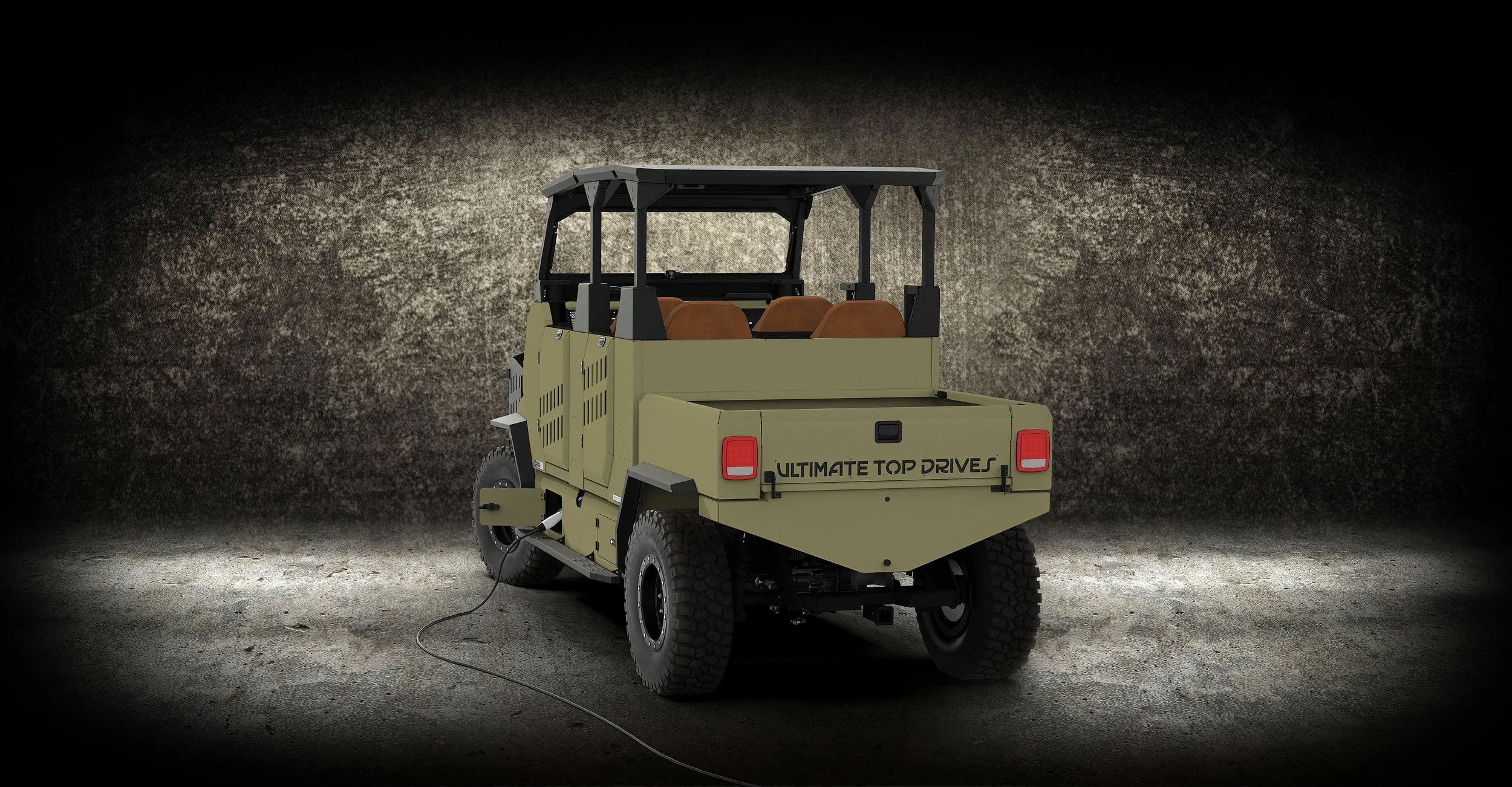

The Cabrito utilizes standard J1772 EV charge cables which plug into mains/wall power and the Cabrito’s charge port to ensure the proper current is supplied to the vehicle, protect the outlet from overcurrent and monitor charging for a smooth power supply. The supplied charger and cable depend on package. Other charge cables of equal capacity may also be used.
J1772 CHARGE CABLE
Wall Plug
Control Box
Charge Handle
Founders Edition / Platinum / Outfitter
208-240V
NEMA 14-15
►►►4 Hrs
Level-2
Level 2, 240V Charging: Approximately 4 hour charge time. 6.6 KW onboard charger and 32 amp J1772 EV charge cable. Requires 208-240V service and a NEMA 14-50 outlet or a suitable adapter used with other 208-240V outlets. Can also charge from 110/120V with an adapter at a slower rate. The charge cable may be hardwired into mains power.
Upland / Sportsman
Level-1
►►►14 Hrs
110/120V
NEMA 5-15
Level 1, 120V Charging: 3.3 KW onboard charger and 16A J1772 EV charge cable. Approximately 14 hour charge time. Uses a typical NEMA 5-15 outlet and requires a dedicated 15 amp breaker. The breaker may trip while the vehicle is charging if the circuit is tied in with other used outlets.
